The VW Vanagon is an extremely capable and well-loved platform that unfortunately hasn’t yet been synonymous with speed, power, efficiency or reliability—all important factors in good, working overland vehicles. That’s where Boxeer comes in. We have spent the last decade researching and developing the latest in engine technology to update and upgrade these vehicles, giving the user a more enjoyable and stress-free driving experience that starts with keeping the vehicle on the trails instead of in a shop.

The 2.0 liter motor is an engineering masterpiece capable of putting out incredible power while remaining efficient, nearly doubling the stock waterboxer fuel economy. It’s low end torque makes rock crawling a breeze. This engine is used in VW vehicles around the world, parts are widely available and affordable.

The 2.0 VW Vanagon Kit is complete and include components for Vanagon installation using in house designed engine cradle , coolant and exhaust systems. this is the most streamlined Vanagon conversion kit on the market.

What’s included:

All Intercooler Silicone with T-Bolt Clamps
Intercooler and Pump ( heat exchanger not included this is specific of the installation 26x7x3.5 recommended)

Fuel Pump
Harness to the front of vehicle (OBD2/ pedal)
Engine
Custom labeled harness
Coolant Bottle
Full Stainless steel custom Mounts
Stainless steel Exhaust
All engine Coolant Hoses
Air Filter
Flywheel and Clutch
Adaptor Plate / Flywheel / stage 2 clutch
Hydraulic Mounts
Accelerator pedal (fly by wire)
R23107-02 Fuel filter with water separator 2 micron Parker

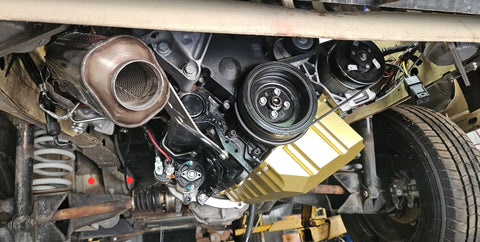

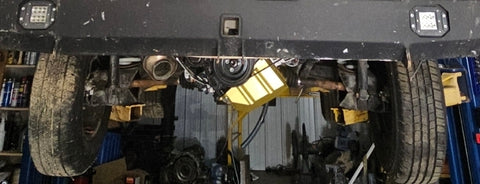

Installation Overview (install manual available down the page) :

Installation by experienced mechanic is recommended.

Choose Power Steering and/or AC options and place order
Drop existing engine and transmission
Pallet arrives
Shorten input shaft by 9mm
Mate Engine Kit to transmission
Lift into vehicle (or lower vehicle, if using lift)
Bolt drivetrain to chassis
Connect provided plumbing
Connect labeled wires.
A/C needs to be charged immediately after install ( this is not a clutch type)
Cnc billet oilpan
50 degree installation
Modified intake to fit under the lid
Water to air intercooler

Click here for the latest instruction manual:

CLICK THIS : Instruction manual V3.0

Not for sale or use in emission controlled vehicles

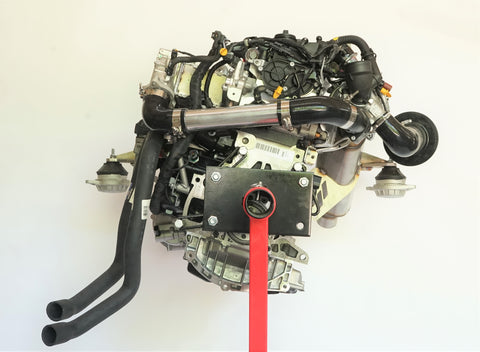

Engine Kit @50˚- 2.0 TDI CR

Installed ($7000)

AC PWM STYLE ($400)

Power Steering ($400)

Quantity
